Turret Lathe Parts
Turret Lathe Parts
Our parts department stocks a full line of Warner & Swasey repair and replacement parts for turret lathe models No. 1, 2, 3, 4, 5, 1A, 2A, 3A, 4A, 5A. We also manufacture new and custom parts for W&S lathe machinery. If you have any questions, give us a call. If you are unsure of the part you may need, email us a picture. A specialist will research its part number and contact you with specs, availability, and pricing.
Warner & Swasey Headstock Parts
Headstock
Example Part List:
– Part # 7X-804 Wrench Shaft
– Part # 6A-2754 Gasket
– Part # 4A-1254 Inch Indicator
– Part # 7A-870 Name Plate
– Part # 7A-2794 Lever Stop
– Part # 7A-2640 Pinion Shaft Gear
– Part # 5A-4165C Clutch Assembly
– Part # 5A-2741 Pressure Gauge
– Part # 7A-2546 Brake Hub
– Part # 6A-2681C Crawl Clutch
– Part # 7Q-932 Pump
– Part # 6A-2953 Speed Chart
* Partial representative list only.
* Full line of parts are available.

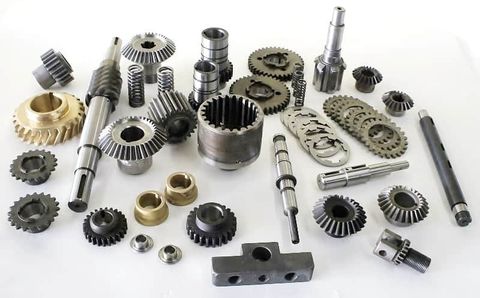

Warner & Swasey Rapid Traverse Parts
Rapid Traverse
Example Part List:
– Part # 7Q-755 Sprockets
– Part # 7Q-933 Worm Gear
– Part # 4Q-427 Fulcrum Yoke
– Part # 7Q-405 Shaft Support
– Part # 7Q-426 Sprocket Shaft
– Part # 7Q-440 Clutch Gear
– Part # 7Q-443 Spline Shaft
– Part # 6Q-748 Drive Plates
– Part # 7Q-450 Gear
– Part # 6Q-448 Spring Seats
– Part # 7Q-908 Worm Shaft
* Partial representative list only.
* Full line of parts are available.

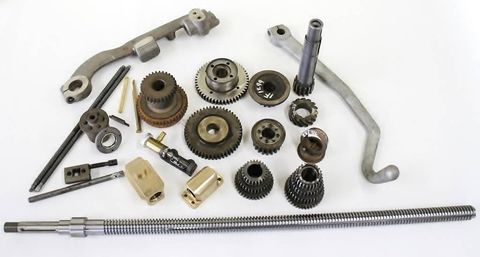

Warner & Swasey Cross Slide Parts
Cross Slide Apron
Example Part List:
– Part # 1D-70 Stop Screws
– Part # 7Q-455 Rapid Key
– Part # 7F-43 Cross Feed Clutch
– Part # 4G-18 Cluster Gear
– Part # 6G-157 Pinion Shaft
– Part # 7D-163 Lever
– Part # 7E-111 Cross Slide Screw
– Part # 1D-70 Knockoff Lever
* Partial representative list only.
* Full line of parts are available.
